FOLDING AND SLIDING SYSTEM DF WSF 601

FOLDING AND SLIDING SYSTEM DF WSF 601

For door weights up to 75kg For wooden door leaves For 2 to 8 leaf folding doors Floating suites possible Corrosion resistance construction 304 marine grade cast stainless steel parts for improved strength and maximum corrosion resistance

  • Description
  • For Glass Thickness In mm
  • Features
  • Available Finishes

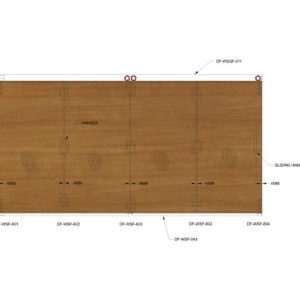

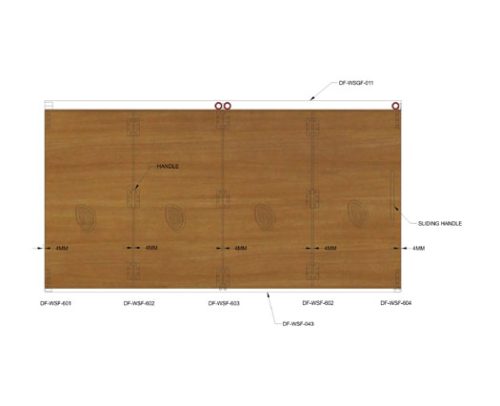

Order Information For Wooden Sliding Folding:

Product Code DF-WSF-601 DF-WSF-602 DF-WSF-603 DF-WSF-604
No. of Panels 02 01 Set 01 Set  __ 01 Set
No. of Panels 03 01Set 01 Set 01 Set __
No. of Panels 04 01 Set 02 Set 01 Set 01 Set
No. of Panels 05 01 Set 02 Set 02 Set __
No. of Panels 06 01 Set 03 Set 02 Set 01 Set

Material And Finishes:

Running track: Aluminium, Anodized
Upper hanging: Nylon roller and SUS304 suspend profile
Hinge: SUS 304
Hanger bodies: SUS 304
Bottom guides suspend fitting: High precision bearings and SUS304
Bottom track: Aluminium, Anodized

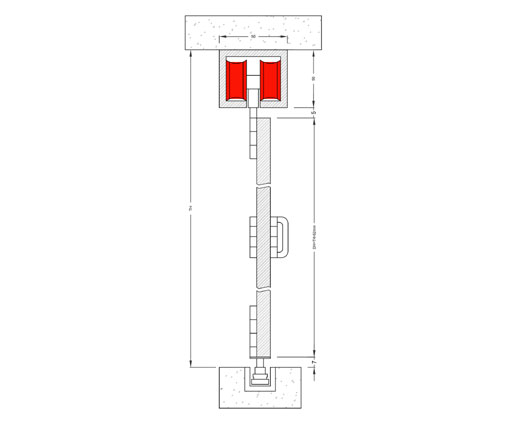

Technical Data:

Max. door height 3300 mm
Max. load capacity 75 kg
Max. door width 900 mm
Max. door leaves 8
For door thickness 35-50 MM
Max. Track Length 16 Feet

Supplied:

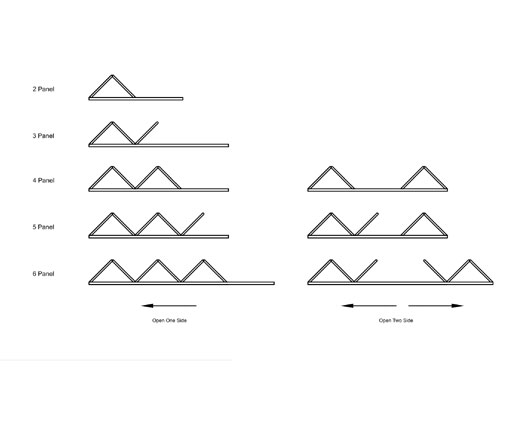

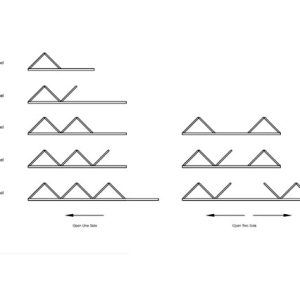

Many installation configuration are possible, with the option of either an odd or even number of panels.some example are shown below.... A maximum of 8 panels can be folded to the left, to the right or floating

  • For door weights up to 75kg
  • For wooden door leaves
  • For 2 to 8 leaf folding doors
  • Floating suites possible
  • Corrosion resistance construction
  • 304 marine grade cast stainless steel parts for improved strength and maximum corrosion resistance
  • Concealed guide channel to enhance appearance
  • Mortise or non mortise hinges and hangers
  • Precision bearings top and bottom to reduce rolling resistance
  • Durable polypropylene channel provides quite operation
  • Ideal for coastal Application
Midnight Black

Glossy

Midnight Black

Gold Finish

Midnight Black

Matt/Satin Finish

Midnight Black

Midnight Black

Midnight Black

Rose Gold
