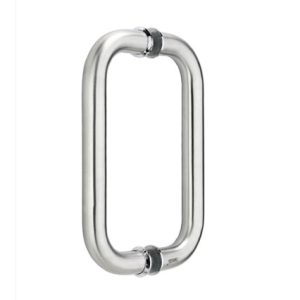

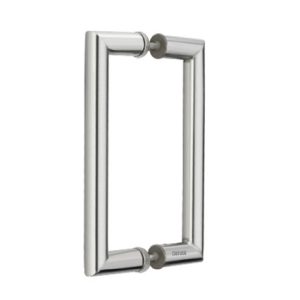

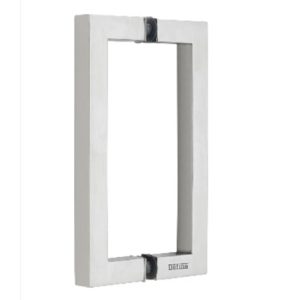

Pull handle in square shape with round tube Gaskets to prevent damage to glass panel Firm positioning for opening glass door Supplied in set

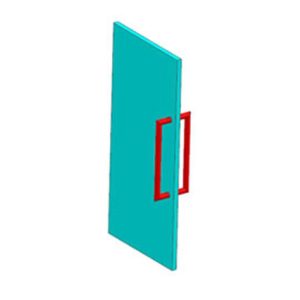

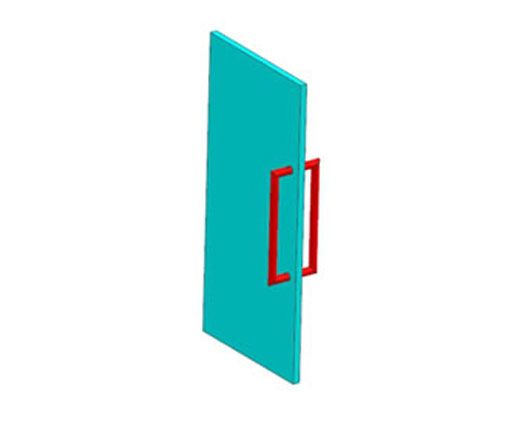

| Area Of Application: | Pull handle for glass door fitting |
| Material : | Stainless steel 304/316 |
| Finish : | SSS / PSS |

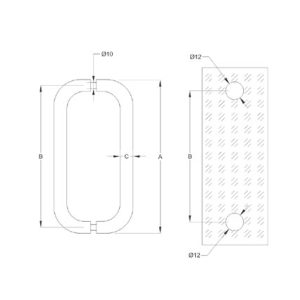

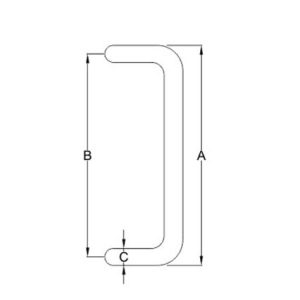

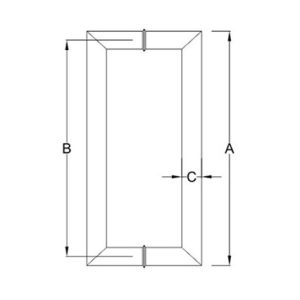

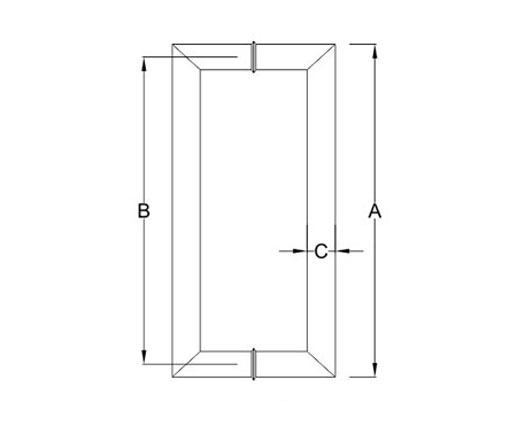

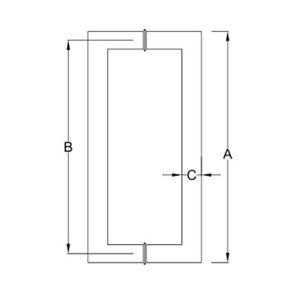

| C = Handle Diameter | B = Center to Center Hole | ||||
| A = Total Size | 22 | 25 | |||
| 222 | 225 | 200 mm | |||
| 272 | 275 | 250 mm | |||
| 322 | 325 | 300 mm | |||
| 372 | 375 | 350 mm | |||

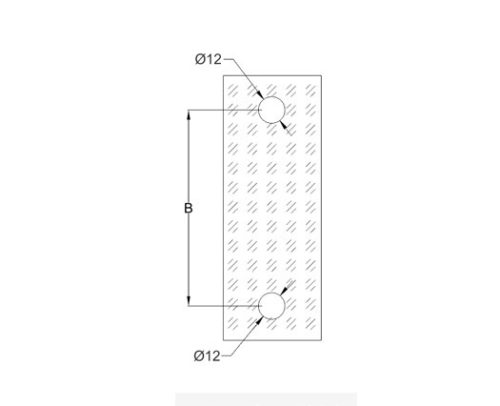

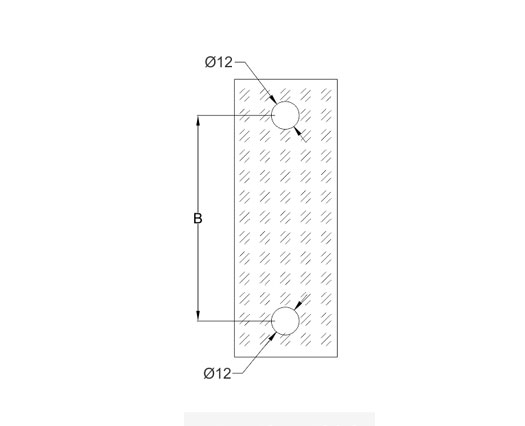

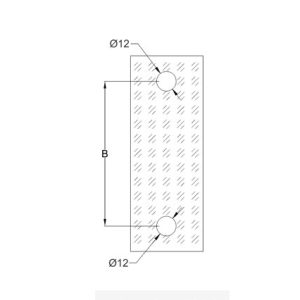

| Center To Center Of Hole (A) | Handle Diameter (B) | Hole Diameter For Class |
| 200 mm | 22 | 25 mm | 12 mm |
| 250 mm | 22 | 25 mm | 12 mm |
| 300 mm | 22 | 25 mm | 12 mm |
| 350 mm | 22 | 25 mm | 12 mm |
| 400 mm | 22 | 25 mm | 12 mm |
| 450 mm | 22 | 25 mm | 12 mm |
| 500 mm | 22 | 25 mm | 12 mm |
| 600 mm | 22 | 25 mm | 12 mm |
