Description

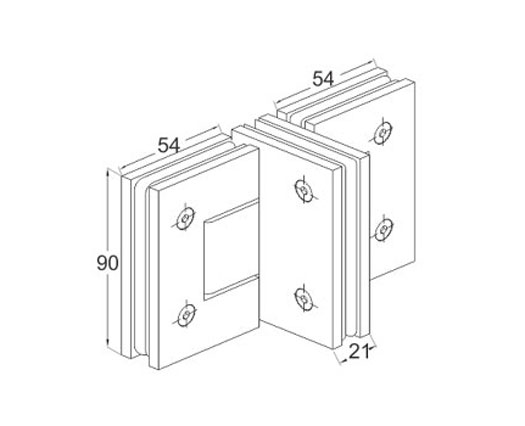

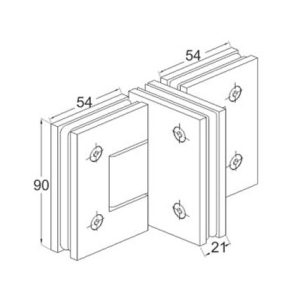

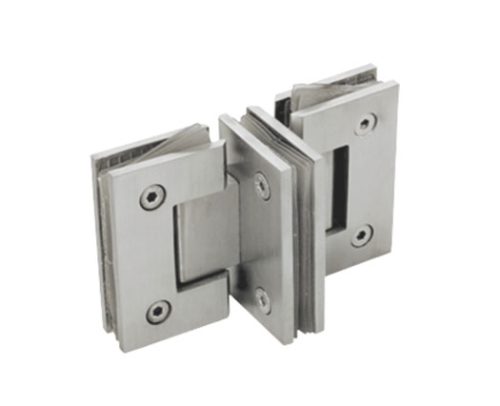

| Glass To GLass Hinge For Three Glass : | Double action spring door return from 25° deg |

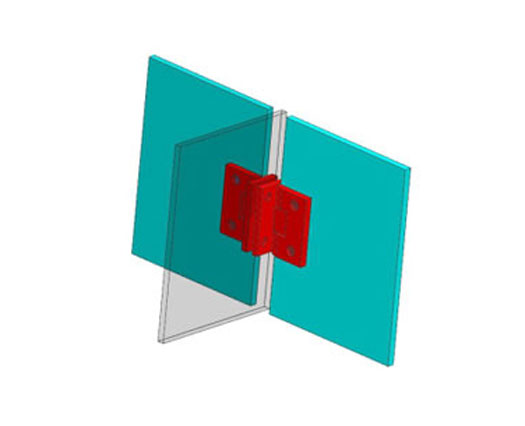

| Area of Application : | For connecting two glass door panel with fixes glass panel |
| Material : | stainless steel 304,316 |
| Finish : | SSS/PSS |

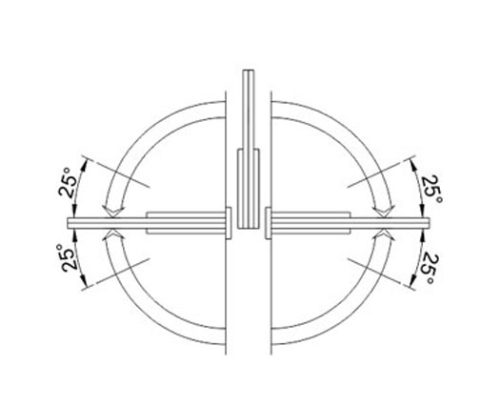

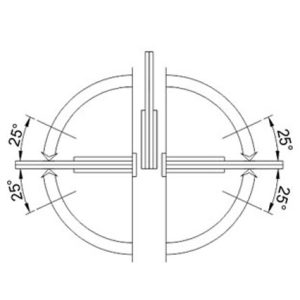

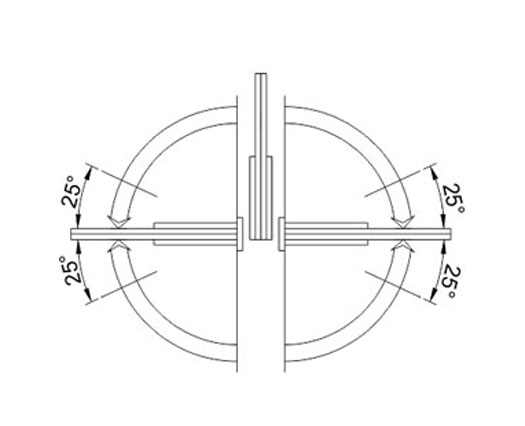

| Opening angle & Side : | Open inside and outside both 90° degree |
| Version : | With automatic closing from opening angle 25° |
| Load Bearing capacity : | 60 kg / 2 hinges |
| Installation : | for clam fixing with a hexagon socket head screws |

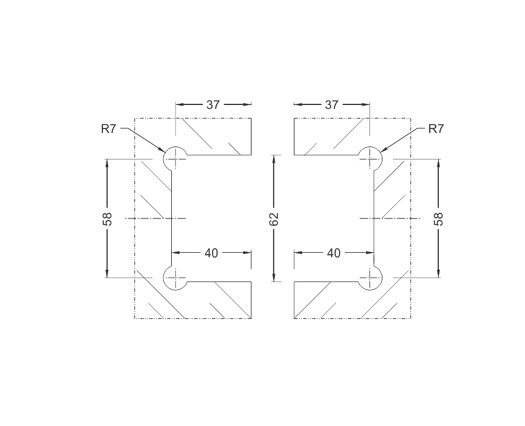

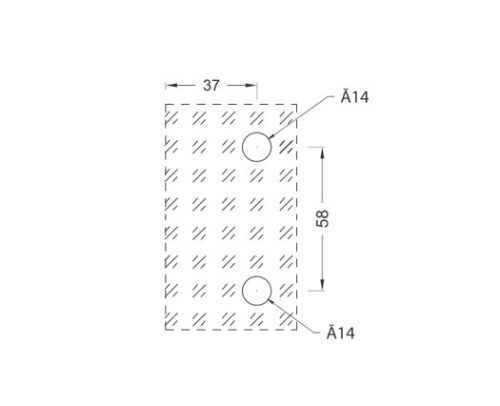

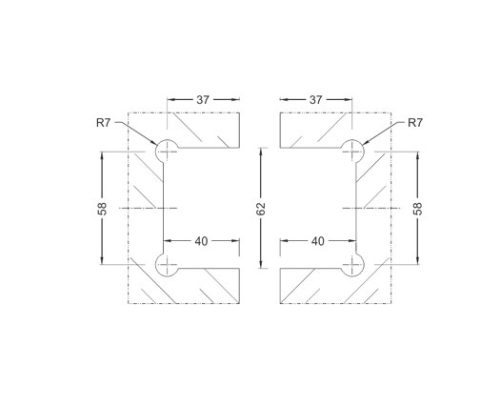

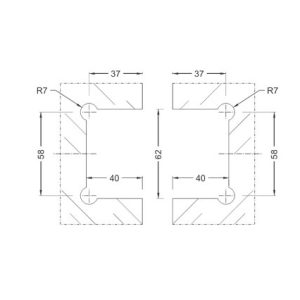

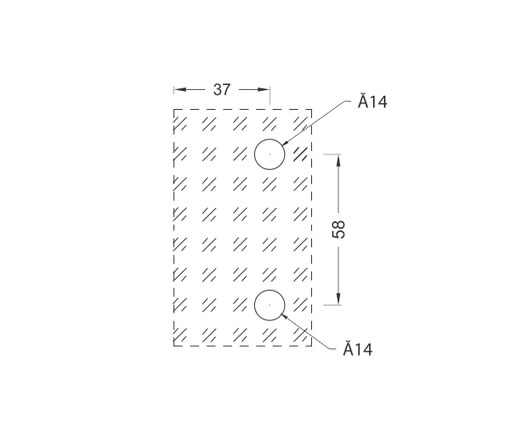

For Glass Thickness In mm
8, 10, 12
Features
- Glass to glass hinge for two glass door panel
- Centrally positioned pivot keeps glass panel in line
- Gasket to prevent damage to glass panel
- Firm grip with glass panel
- Maximum door width is 800 mm
