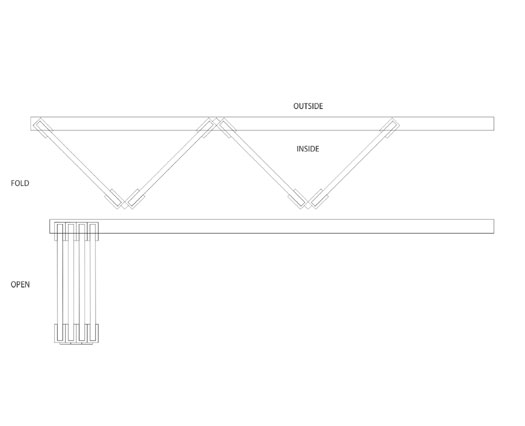

Advanced folding mechanism for up to 6 frameless glass panel. Glass folding system is designed for both Interior and exterior application. Panel are connected using a hinges system. Nylon wheel integrated bearing for quiet easy running Integrated bolt lock for security
| Material: | Stainless steel - 304 / 316 |
| Finish: | SSS/PSS |

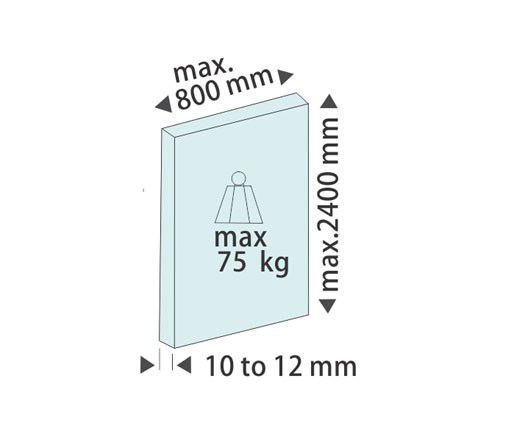

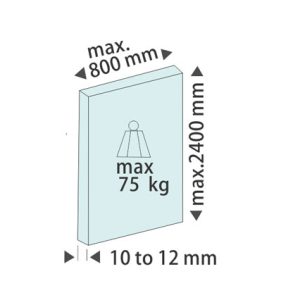

| Glass Thickness: | 10 To 12 mm |

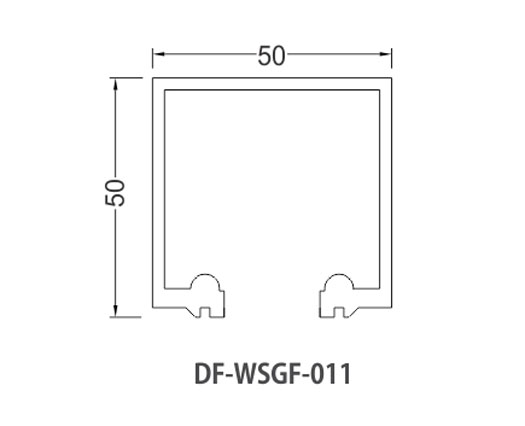

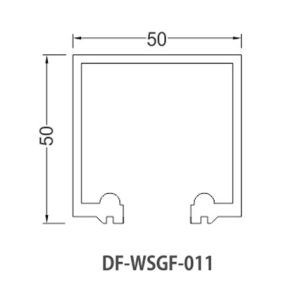

DF-WSGF-011 :

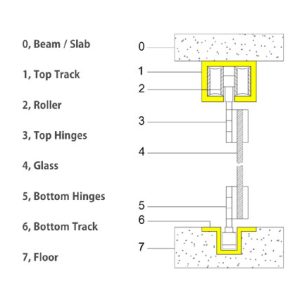

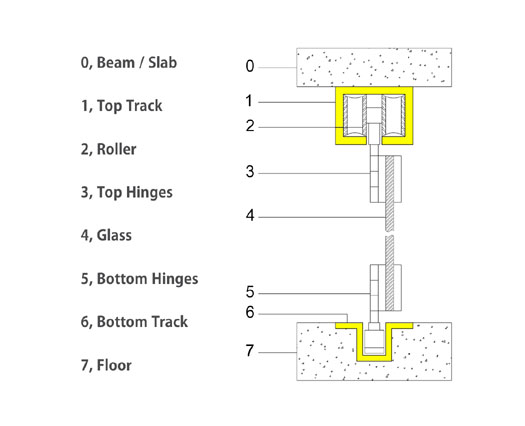

- Aluminum anodized top track
Features :
- Finish: Aluminum Anodized
- Size: 3600 mm /4800 mm

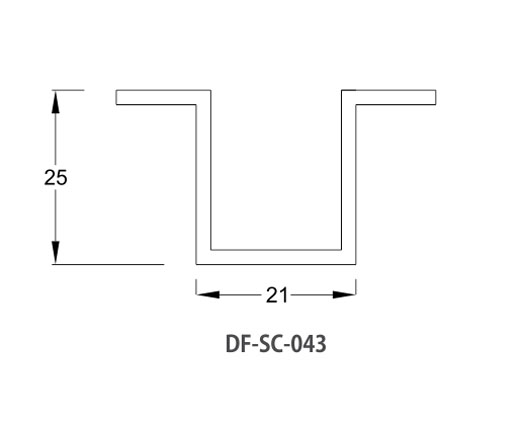

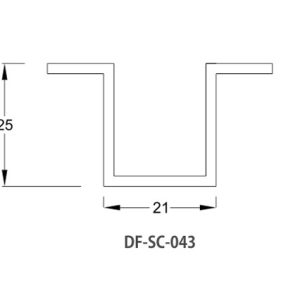

DF-SC-043 :
- Aluminum anodized bottom track
Features :
- Aluminum track integrated
- Size: 3600 / 4800 mm

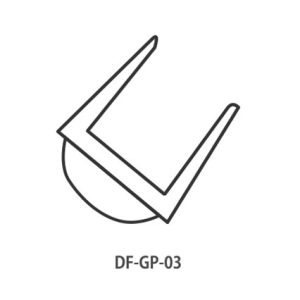

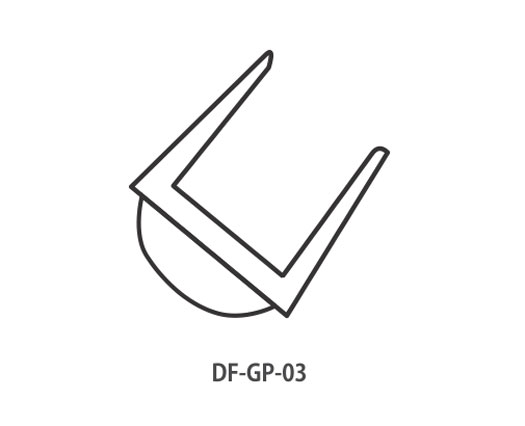

PVC Sealing :
- Clear self-adhesive transculated seal
Features :
- Transparent seal
- Size: 2200 mm
Glass Sliding Lock(As Per Required) :
- Sliding glass door lock (wall to glass & glass to glass )
Features :
- Material: stainless steel - 304 / 316
- Glass thickness : 10 mm To 12 mm
- Finish :stain stainless steel / PSS
Calculation Glass Weight:
| Thickness Of Glass : | Approx Weight Per Sq. Ft: |
| 6mm | 1.40 Kg |
| 8mm | 1.85 Kg |
| 10mm | 2.35 Kg |
| 12mm | 2.95 Kg |
Features:

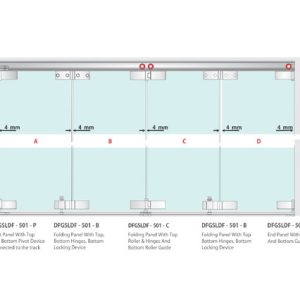

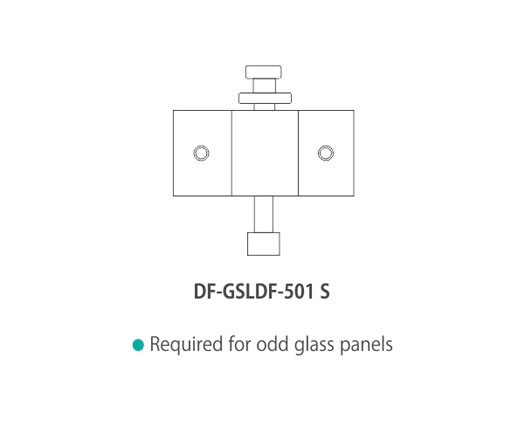

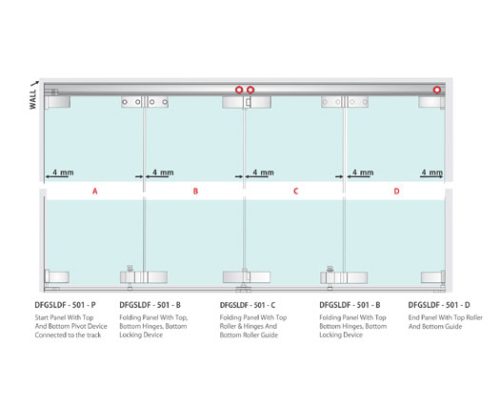

| Product Code | DFGSLDF- 501 P |

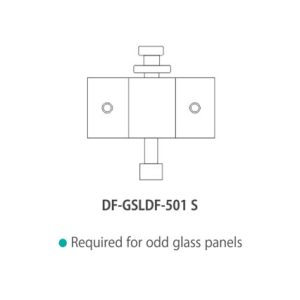

DFGSLDF - 501 B | DFGSLDF - 501 C | DFGSLDF - 501 D | DFGSLDF - 501 S |
| No. Of Panels 02 | 01 Set | 01 Set |
__ | 01 Set | AS per optional |
| No. Of Panels 03 | 01 Set |
01 Set |
01 Set |
__ | AS per optional |
| No. Of Panels 04 | 01 Set |
02 Set |
01 Set |
01 Set |
AS per optional |
| No. Of Panels 05 | 01 Set |
02 Set |
02 Set |
__ | AS per optional |
| No. Of Panels 06 | 01 Set |
03 Set | 02 Set | 01 Set |
AS per optional |
