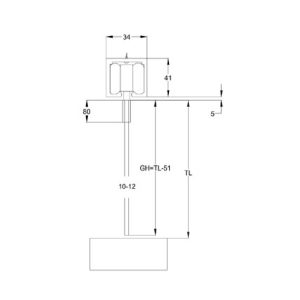

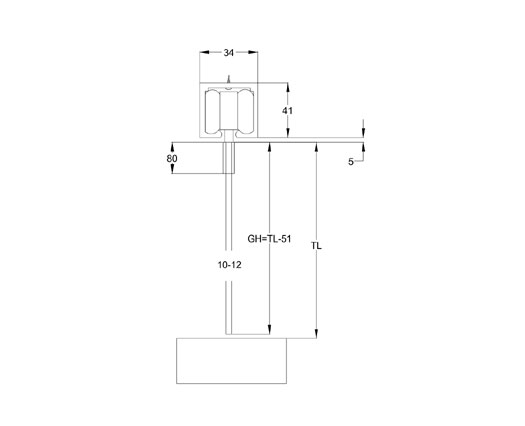

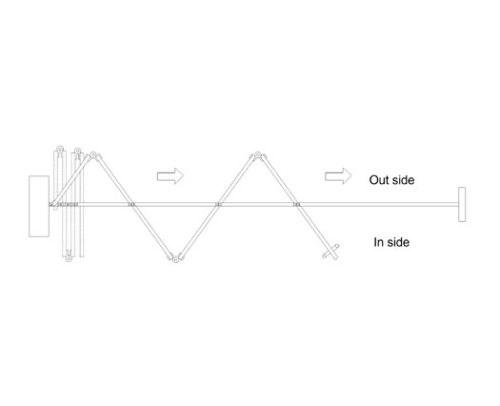

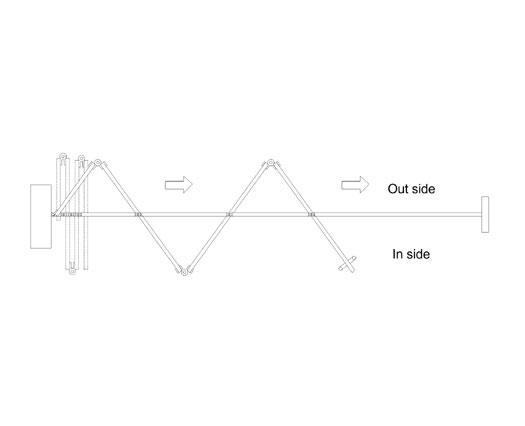

Advanced glass center folding mechanism for up to 6 frameless panel with professional design concept. Center folding system is designed for both interior and exterior applications. Panel are connected using a hinges system. Nylon wheel integrated bearing for quiet easy running

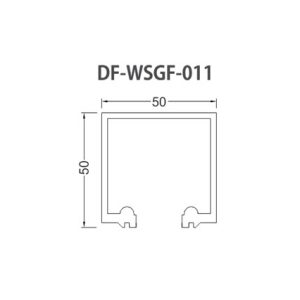

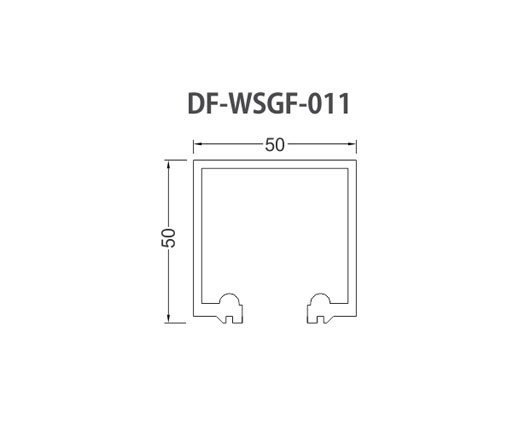

DF-WGSF-011 :
- Aluminum anodized top track
Features :
- Finish:aluminum anodized
- Size:3600 mm /4800 mm

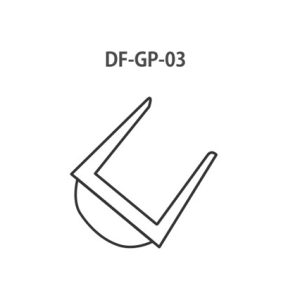

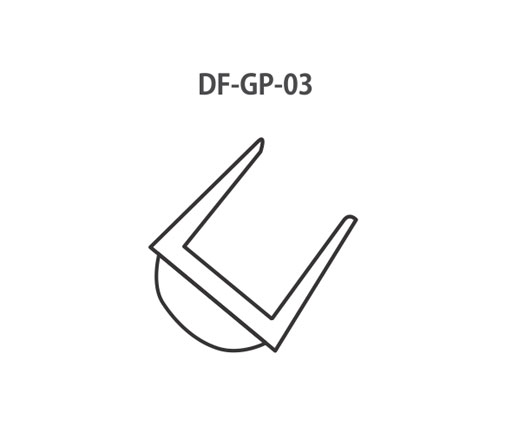

PVC Sealing :
- Clear self-adhesive transculated seal
Features :
- Transparent seal
- Size: 2200 mm
Glass Sliding Lock (As Per Required) :
- Sliding glass door lock (wall to glass & glass to glass )
Features :
- Material: stainless steel - 304 / 316

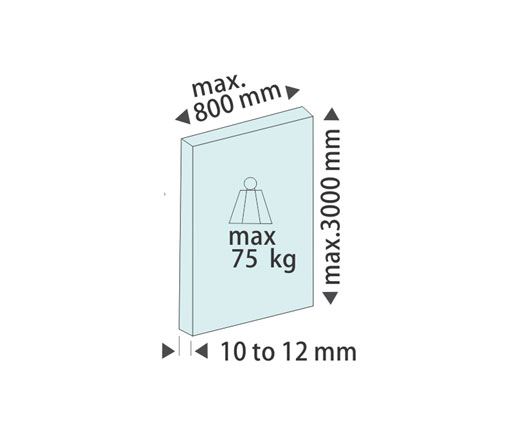

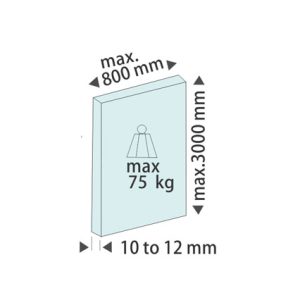

- Glass thickness : 10 mm To 12 mm
- Finish :stain stainless steel
Description :
| Material: | Stainless steel - 304 / 316 |
| Finish: | SSS / PSS |
| Glass Thickness: | 10 To 12 mm |
Calculation Glass Weight:
| Thickness Of Glass : | Approx Weight Per Sq. Ft: |
| 6mm | 1.40 Kg |
| 8mm | 1.85 Kg |
| 10mm | 2.35 Kg |
| 12mm | 2.95 Kg |
Features:

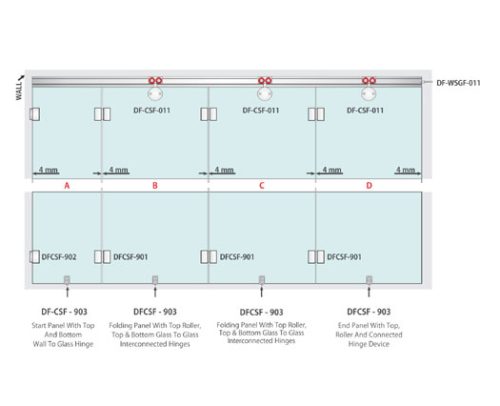

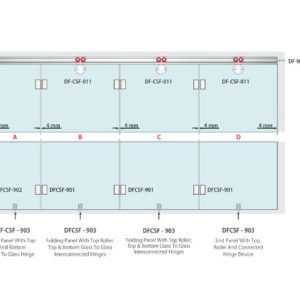

| Product Code | DF CSF 011 | DF CSF 901 | DF CSF 902 | DF CSF 903 | DF CSF 904 |
| No of Panels | |||||
| 2 | 1 Pcs | 2 Pcs | 2 Pcs | As per required | As per require |
| 3 | 2 Pcs | 4 Pcs | 2 Pcs | As per required | As per require |
| 4 | 3 Pcs | 6 Pcs | 2 Pcs | As per required | As per require |
| 5 | 4 Pcs | 8 Pcs | 2 Pcs | As per required | As per require |
| 6 | 5 Pcs | 10 Pcs | 2 Pcs | As per required | As per require |
