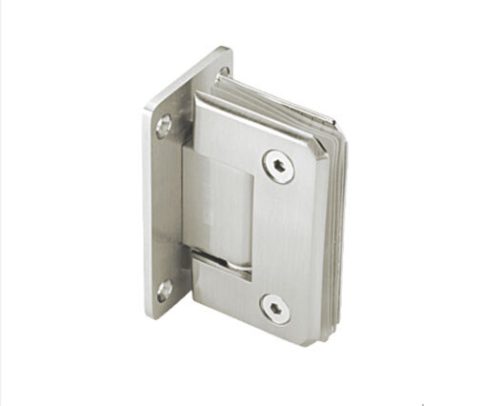

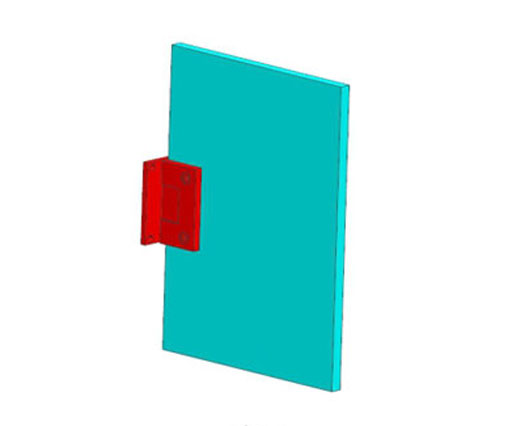

Wall to glass hinge at 90° Centrally positioned pivot keeps glass panel in line Gaskets to prevent damage to glass panel Firm grip with glass panel Maximum door width is 800 mm
| Wall to Glass 90° | Double action spring door return from 25° |
| Area of Application : | For connecting wall to glass hinges at 90° |
| Material : | Brass |
| Finish : | SSS / PSS |
| Opening angle & side : | Open inside and outside both 90° deg |

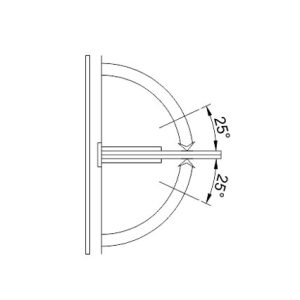

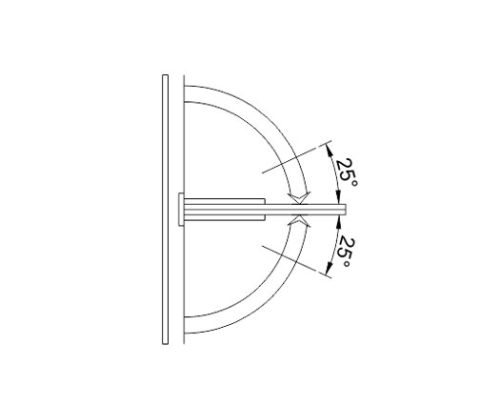

| Version : | Automatic closing from opening angle 25° |
| Load Bearing capacity : | 60 kg / 2 Hinges |
| Installation : | For Screw fixing to the wall, for clam fixing with a hexagon socket head screws |
