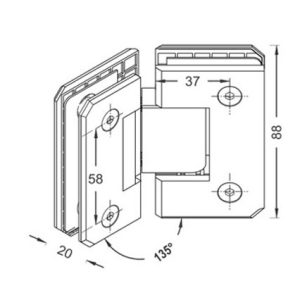

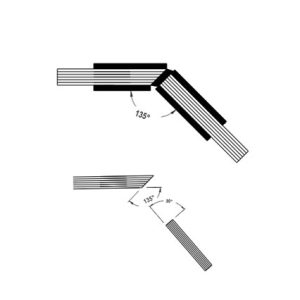

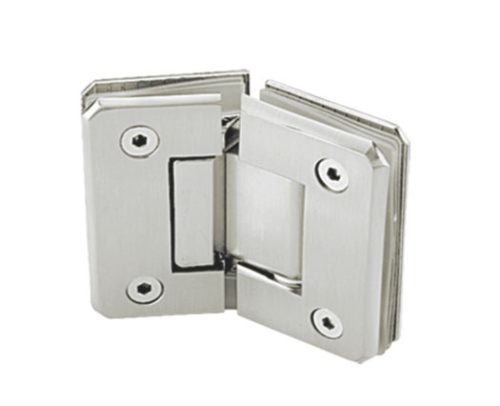

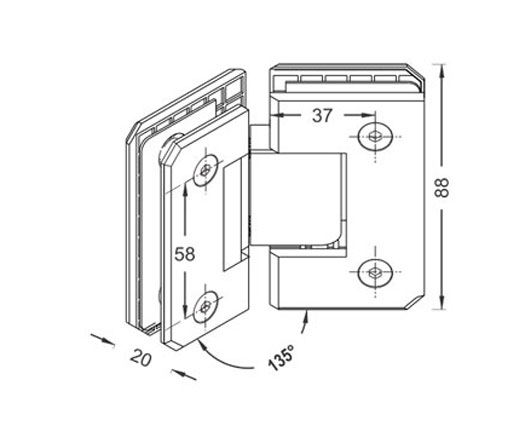

Glass to glass hinge at 135° Centrally positioned pivot keeps glass panel in line Gaskets to prevent damage to glass panel Firm grip with glass panel Maximum door width is 800 mm
| Glass to glass 135° | Double action spring door return from 25° |

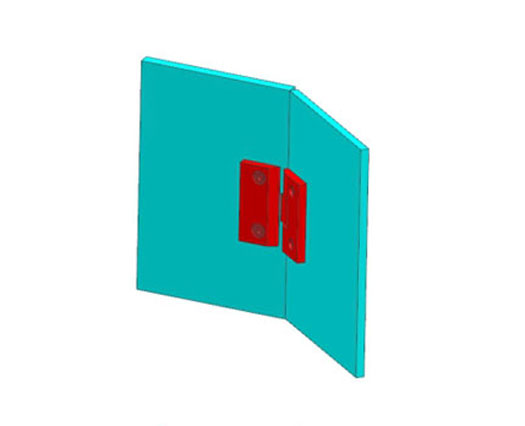

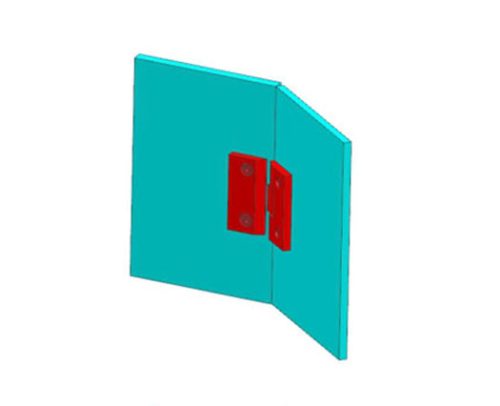

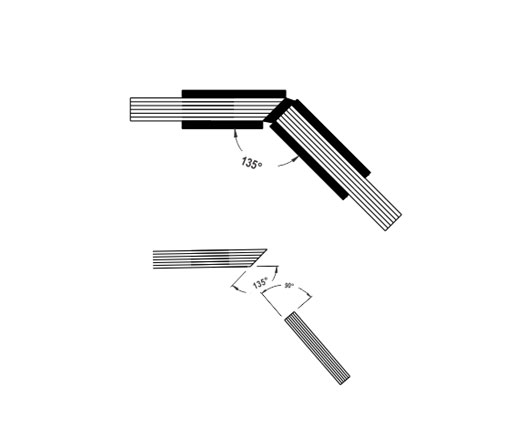

| Area of application : | For connecting glass door panel with a fixed glass panel at 135° |
| Material : | Brass |
| Finish : | SSS / PSS |
| Opening angle & Side : | Open inside and outside both 90° degree |

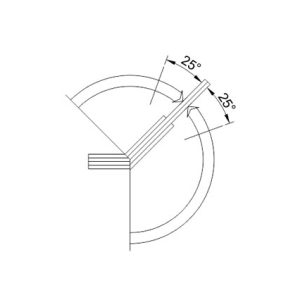

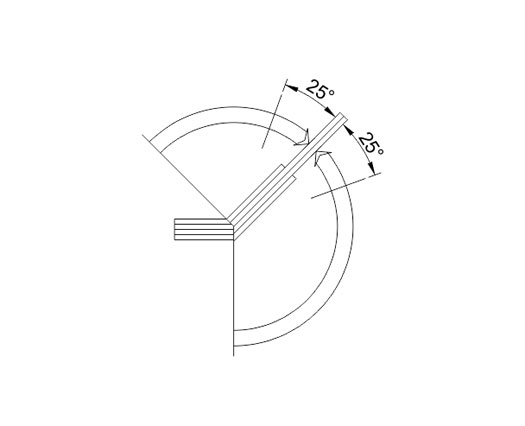

| Version : | Automatic closing from opening angle 25° |
| Load bearing capacity : | 60 kg / 2 Hinges |
| Installation : | clamp fixing with a hexagon socket head screws |
