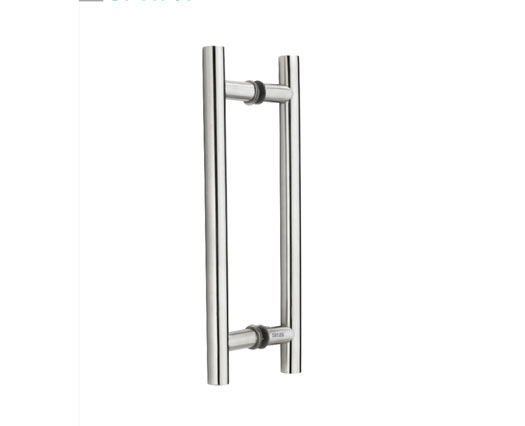

Glass door pull handle " H " type Gaskets to prevent damage to glass panel Firm positioning for opening glass door Supplied in set

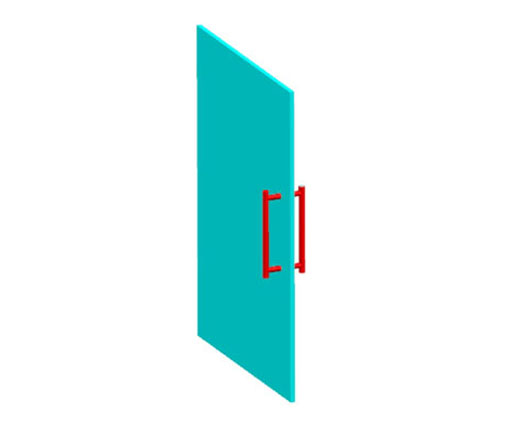

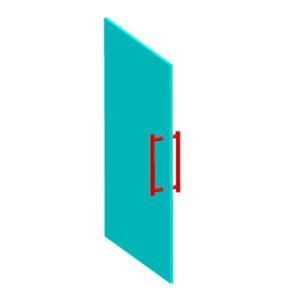

| Area Of Application : | Pull handle for glass door fitting |
| Material: | Stainless steel 304, 316 |
| Glass Thickness: | 08 To 12 MM |
| Finish: | SSS / PSS |

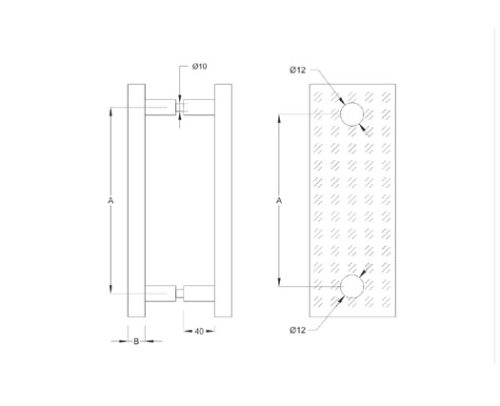

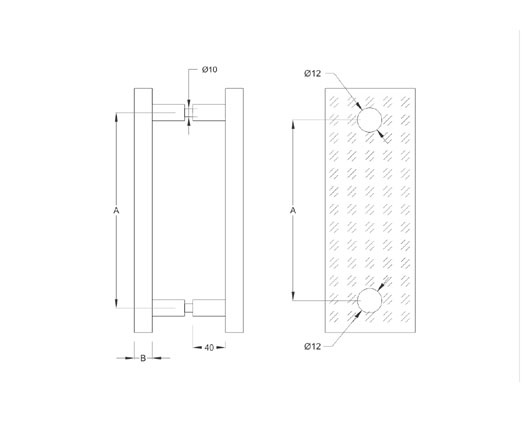

| Center To Center Of Hole (A) | Handle Diameter (B) | Hole Diameter For Class |
| 200 mm | 22 | 25 mm | 12 mm |
| 250 mm | 22 | 25 mm | 12 mm |
| 300 mm | 22 | 25 mm | 12 mm |
| 350 mm | 22 | 25 mm | 12 mm |
| 400 mm | 22 | 25 mm | 12 mm |
| 450 mm | 22 | 25 mm | 12 mm |
| 500 mm | 22 | 25 mm | 12 mm |
| 550 mm | 22 | 25 mm | 12 mm |
| 600 mm | 22 | 25 | 32 | 38 mm | 12 mm |
| 900 mm | 25 | 32 | 38 mm | 12 mm |
| 1100 mm | 25 | 32 | 38 mm | 12 mm |
| 1200 mm | 25 | 32 | 38 mm | 12 mm |
