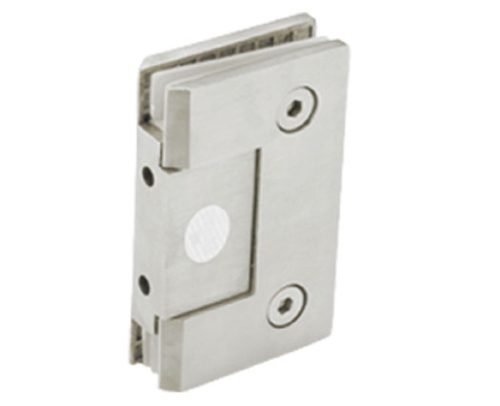

Wall to glass hinges one side only Centrally positioned pivot keeps glass panel in line Gasket to prevent damage to glass panel Firm grip with glass panel Maximum door width is 800 mm
| Wall to glass 90° | Double action spring door return from 25° degree |
| Area of application : | For connecting wall to glass hinge at 90° |
| Material : | Stainless steel 304, 316 |
| Finish : | SSS/PSS |
| Opening angle & Side : | Open inside and outside both 90° deg |
| Version : | Automatic closing from opening angle 25° |
| Load Bearing capacity : | 60 kg / 2 hinges |
| Installation : | Screw fixing to the wall,Clamp fixing with a hexagon socket head screws |
